Optical flatness is a key parameter in precision engineering and optics, referring to how accurately a surface conforms to an ideal flat plane. Measured in fractions of a wavelength of light, it plays a critical role in the performance of optical components, high-precision machinery, and advanced manufacturing processes.
Even minor deviations in flatness (on the scale of nanometres) can impact how a part functions. For optical systems, these imperfections may distort light, reduce clarity, or cause alignment issues. In mechanical applications, poor flatness can lead to uneven contact, increased wear, and reduced component lifespan.
How To Measure Optical Flatness?

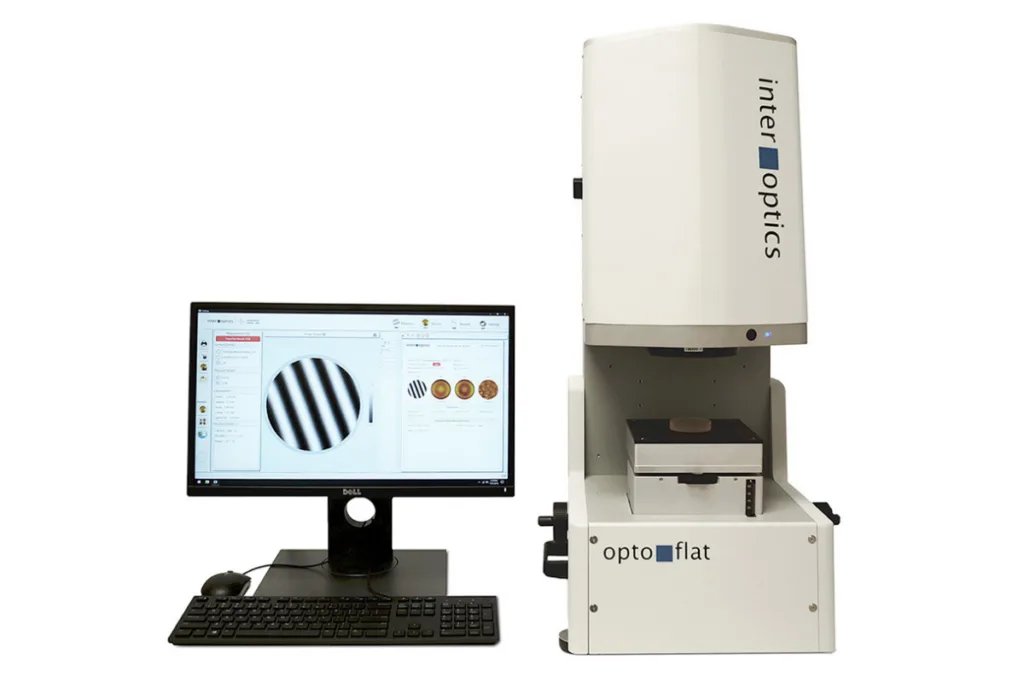

Optical flatness is typically assessed using interferometry, a highly sensitive non-contact measurement method. An optical flat – a reference-grade flat surface – is placed over the component being tested. When illuminated with monochromatic light, interference fringes appear between the two surfaces. These fringes visually represent the difference in height between the test surface and the reference.
Each fringe corresponds to a specific deviation in height, usually half the wavelength of the light used. Advanced systems such as phase-shifting interferometers allow for detailed analysis of the interference pattern, revealing surface irregularities with sub-micron precision.
This method is preferred for high-precision components because it avoids physical contact, ensuring the surface remains unmarked and uncontaminated.
Why Measure Optical Flatness?
Flatness measurement is essential across many industries where precision and reliability are non-negotiable. The benefits of accurate flatness assessment include:
- Enhanced optical clarity and performance
- Tighter tolerances in assembly and alignment
- Improved reliability and longevity of components
- Compliance with industry-specific quality standards
When surfaces meet flatness specifications, components function more predictably and integrate more effectively with other parts, especially in complex systems.
Industries That Rely on Flatness Testing
Optical flatness measurement supports quality and performance in:
- Semiconductor manufacturing – Ensuring wafer and mask planarity
- Aerospace and defence – Enabling high-precision optics and mechanical fits
- Medical technology – Supporting lens production and diagnostic equipment
- Scientific research – Guaranteeing accuracy in experimental setups
Precision Matters
For companies requiring ultra-flat surfaces – whether in optics, engineering, or electronics – flatness testing is not optional. It is a foundational part of quality assurance and product development. Using advanced metrology techniques, including interferometric testing, ensures every part meets exact specifications.
